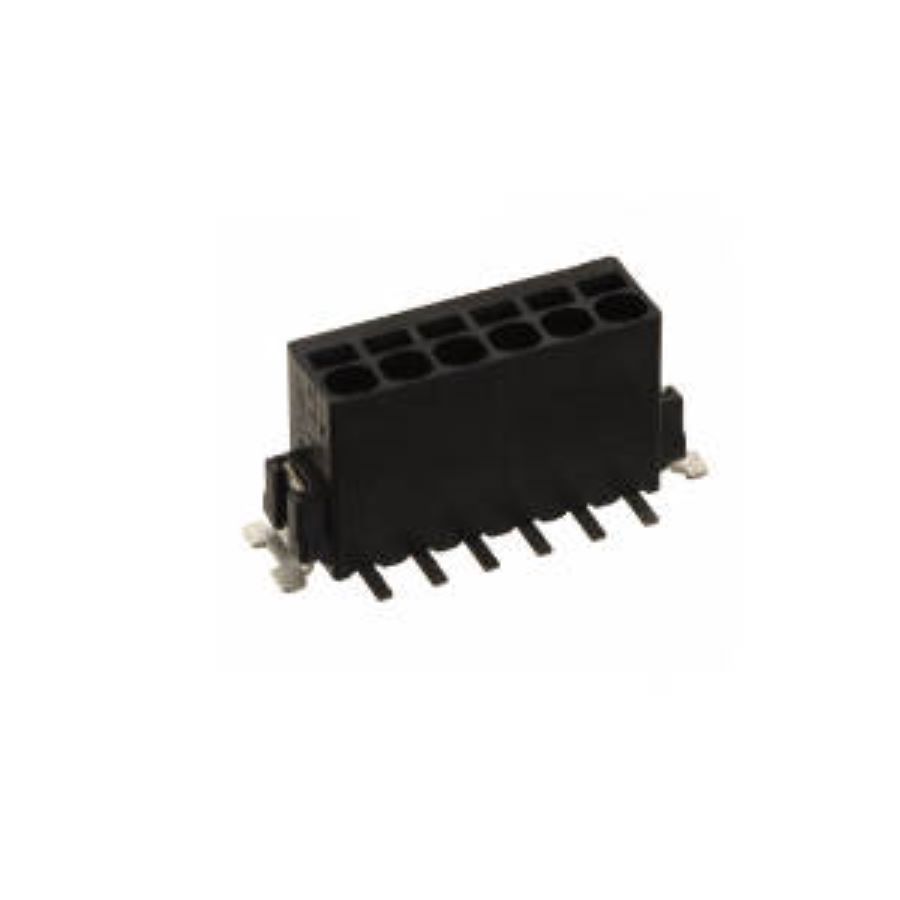

1771130
Manufacturer:
Phoenix Contact
Mfr.Part #:
1771130
Datasheet:
Description:
Terminal Blocks PCB Mount 6 2.5 mm 5 A 150 V 26 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Termination | Spring Clamp |
| Packaging | Reel |
| Voltage Rating | 150 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 150 V |
| Contact Plating | Tin |
| Pitch | 2.5 mm |
| Current | 5 A |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Color | Black |
| Number of Positions | 6 |
| Housing Material | Polymer |
| Number of Positions Per Level | 6 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 24 AWG |
| Housing Color | Black |
| Connection Method | Push-In |
| Wire Gauge Range | 26 AWG to 20 AWG |
Stock: 3749
Distributors
pcbx
pcbxUnit Price$0.87006
Ext.Price$0.87006
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.87006 | $0.87006 |
| 10 | $0.86077 | $8.60770 |
| 25 | $0.85158 | $21.28950 |
| 50 | $0.84249 | $42.12450 |
| 100 | $0.83350 | $83.35000 |
| 300 | $0.82460 | $247.38000 |
